i564W SIP Indoor Station
SIP Intercom and Security

i564W SIP Indoor Station

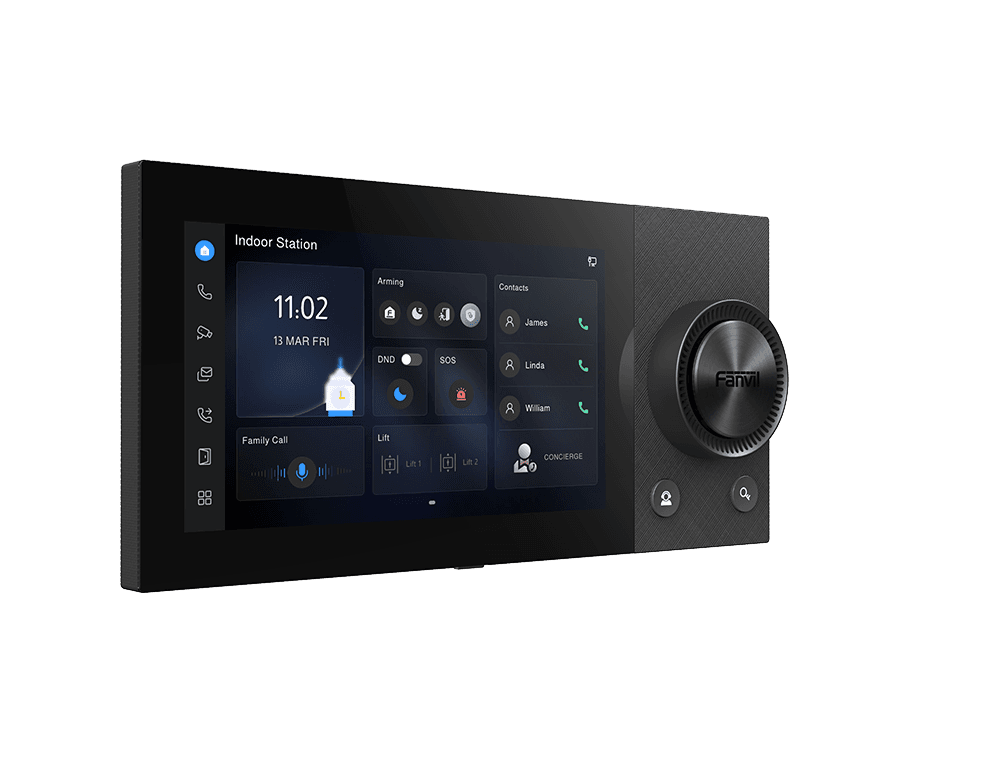

The i564W is a 7-inch color touchscreen indoor station that integrates professional video intercom and access control into a sleek, minimalist unit. A brand-new UI/UX combines with a tactile volume knob to provide intuitive interaction, while HD audio and one-touch family call work together to deliver instant, crystal-clear communication. By providing a secure, convenient, and smart living experience, it is ideal for mid-to-high-end residences, villas, and commercial buildings.

Request a quoteContact

Product details

The i564W is a 7-inch color touchscreen indoor station that integrates professional video intercom and access control into a sleek, minimalist unit. A brand-new UI/UX combines with a tactile volume knob to provide intuitive interaction, while HD audio and one-touch family call work together to deliver instant, crystal-clear communication. By providing a secure, convenient, and smart living experience, it is ideal for mid-to-high-end residences, villas, and commercial buildings.


Specifications

i564W SIP Indoor Station — Specifications
SpecificationValue
Specifications
SystemLinux

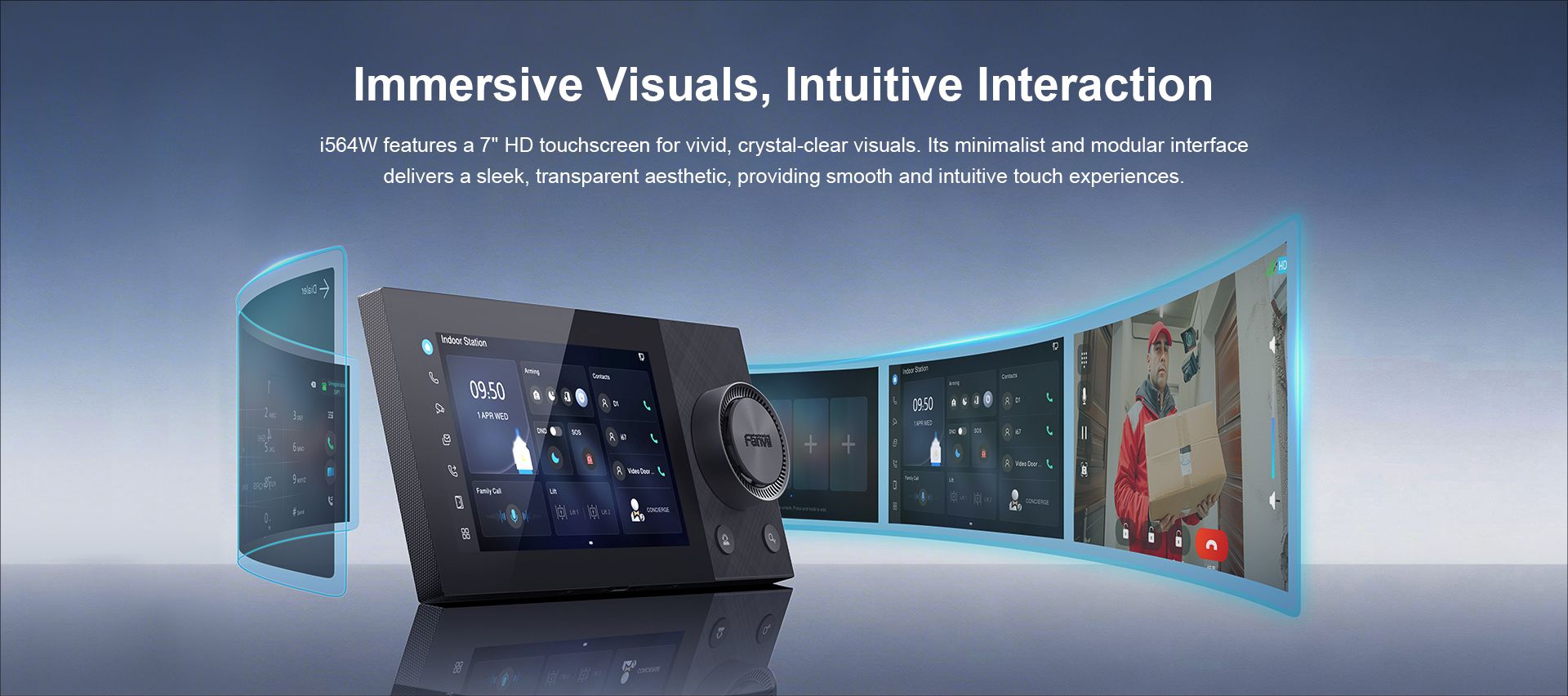

Screen7-inch 1024×600 IPS capacitive color touch screen
HD Audio√
Wideband CodecsG.722, Opus

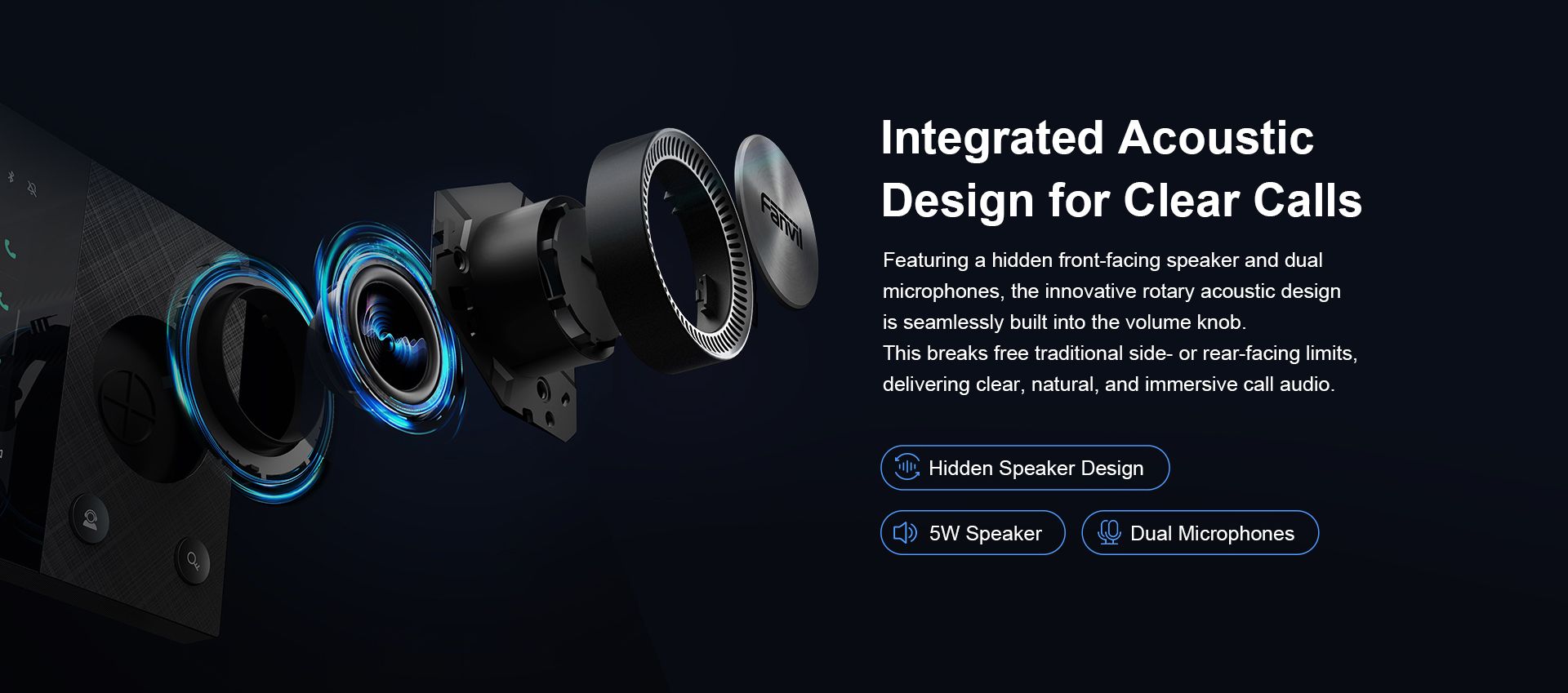

Speaker Power5W multimedia speaker
Video Resolution1080P
Video CodecH.264
ONVIF√
SIP Lines6
Bluetooth√
WiFiSupport 2.4G WiFi 6
Buttons1 knob, 2 function keys
Alarm Input Interfac8
Short Circuit Output1
Door Bell Interface1
RS-485 Interface1
TF Interface√（Up to 256GB）
USB Port×

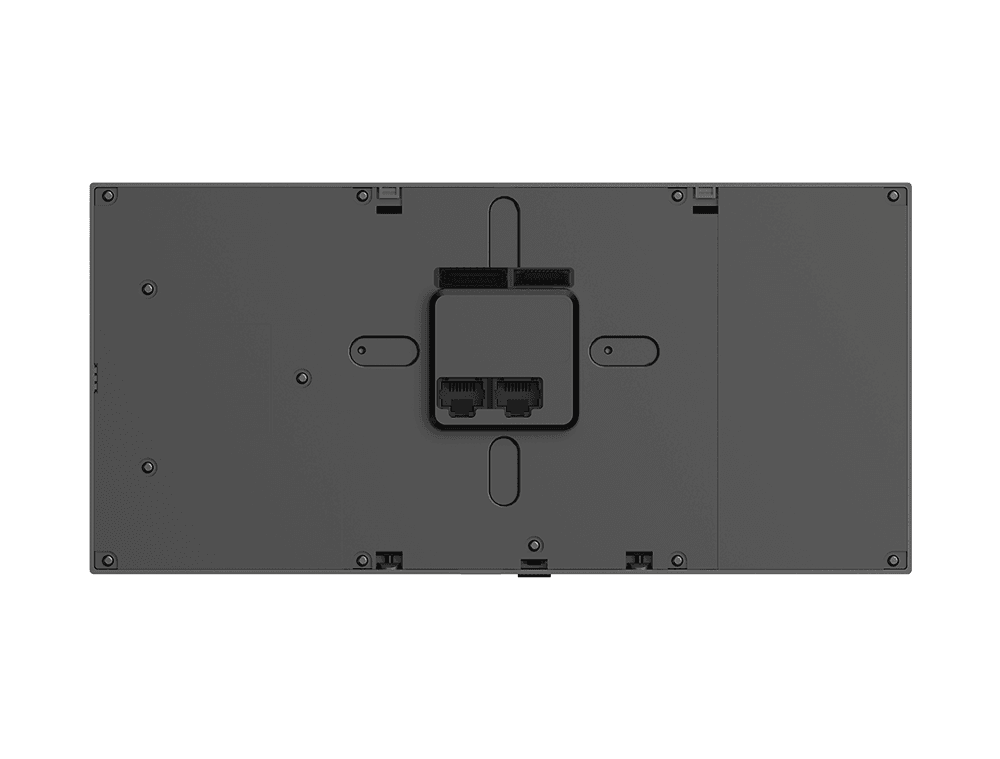

Network2*RJ45 10/100Mbps
PoE√
Installation ModeWall mounting
